Apex Microwave's frequency range DC to 0.3GHz low-pass filter is designed for high-frequency applications such as 6G communications, providing stable, low-loss signal transmission.
Product Features:
Frequency Range: DC to 0.3GHz, filter out high-frequency signals and improve system performance.
Insertion Loss: ≤2.0dB, ensuring low attenuation.
VSWR: Maximum 1.4, ensuring signal quality.
Attenuation: Attenuation greater than 60dBc at 0.4-6.0GHz.
Power Carrying Capacity: Supports 20W CW.
Operating Temperature: -40°C to +70°C.
Storage Temperature: -55°C to +85°C.
Mechanical Specifications:

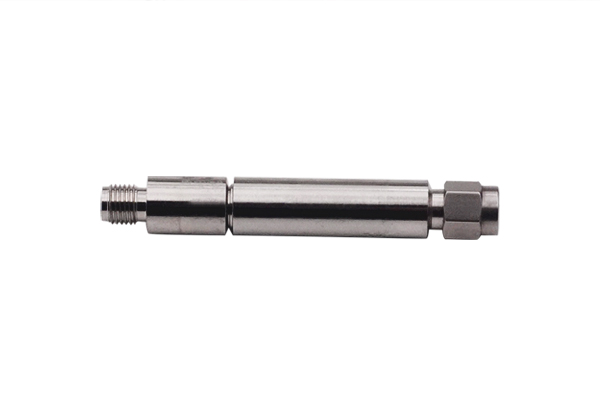

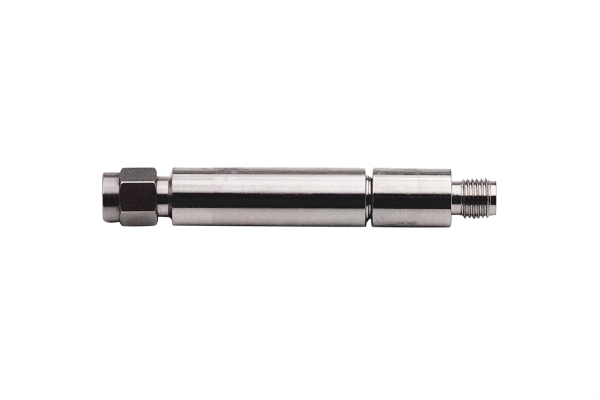

Dimensions: 61.8mm x φ15, suitable for space-constrained scenarios.
Connectors: SMA female and SMA male.
Material: Aluminum alloy, corrosion-resistant.
Application areas: Suitable for high-frequency RF applications such as 6G communication, satellite communication, radar systems, etc.
Summary: This low-pass filter is widely used in high-frequency communication systems due to its excellent performance, providing strong support for 6G communication.
