LC Duplexer DC-240MHz / 330-1300MHz: High Isolation RF Solution

In modern wireless communication systems, the duplexer is an indispensable RF passive device used to efficiently separate the transmit and receive channels to ensure that the signals do not interfere with each other. The DC-240MHz / 330-1300MHz LC duplexer launched by Apex Microwave has become an ideal choice for communication equipment integration due to its compact structure, excellent performance and high cost performance.

This product covers the low frequency band DC-240MHz and the high frequency band 330-1300MHz, supports dual-channel RF signal separation, has an insertion loss of only ≤0.8dB, a standing wave ratio of ≤1.5:1, and an isolation of ≥40dB, which can effectively reduce signal interference between ports and improve system stability. Its rated input power is 35W, supporting a variety of medium-power communication scenarios.

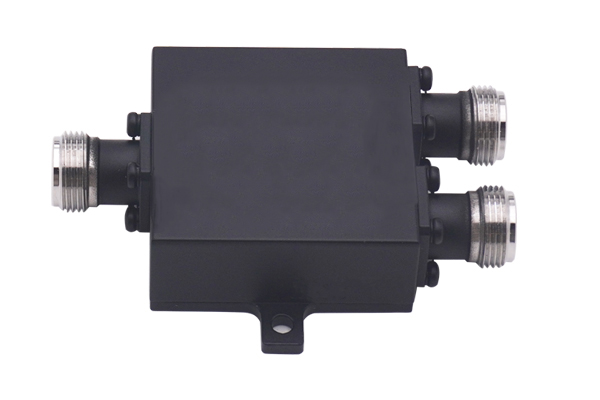

In terms of structure, the duplexer adopts 4310-Female interface, with a size of 50×50×21mm, IP41 protection level and black spray-painted shell, which is suitable for various indoor equipment integration environments. The operating temperature range is -30°C to +70°C, which meets the operating requirements of most industrial and commercial communication systems, and the product complies with RoHS 6/6 environmental protection standards.

Apex Microwave can provide customized services according to customer needs, including frequency range, interface type, shell design and other parameter adjustments, which are suitable for wireless base stations, RF front-ends, DAS systems, radar communications and signal processing modules. All products are provided with a three-year warranty to ensure that customers can use them without worries.
