High-performance RF isolators: driving the future of communications, medical and industrial fields

In RF systems, RF isolators are key components that are dedicated to achieving unidirectional signal transmission and path isolation, effectively preventing reverse interference and ensuring stable system operation. It is widely used in key fields such as modern communications, radar, medical imaging and industrial automation, and is a core component to improve the reliability and anti-interference of RF systems.

Core principle of RF isolators

The isolator cleverly utilizes the anisotropy of ferrite materials under a constant magnetic field to achieve low-loss transmission of forward signals, while the reverse signal is guided to the terminal load for absorption, effectively blocking interference and ensuring unidirectional signal flow within the system, just like a “one-way street for RF traffic”.

Application in the field of communications

In mobile communication base stations, RF isolators are used to isolate the transmission and reception paths, prevent strong transmission signals from interfering with the receiving end, and improve receiving sensitivity and system capacity. Especially in 5G base stations, its high isolation, high bandwidth and low insertion loss characteristics are particularly important.

Safety assurance in medical equipment

In medical equipment such as MRI and radiofrequency ablation, isolators can isolate the transmitting and receiving coils, improve image quality, prevent electromagnetic interference between devices, and ensure patient safety and diagnostic accuracy.

Anti-interference weapon in industrial automation

In the face of high-interference environments, isolators can effectively block high-frequency noise generated by equipment such as motors and welders, ensure the stability of wireless sensor networks and device signal interfaces, and improve the system’s anti-interference ability and equipment life.

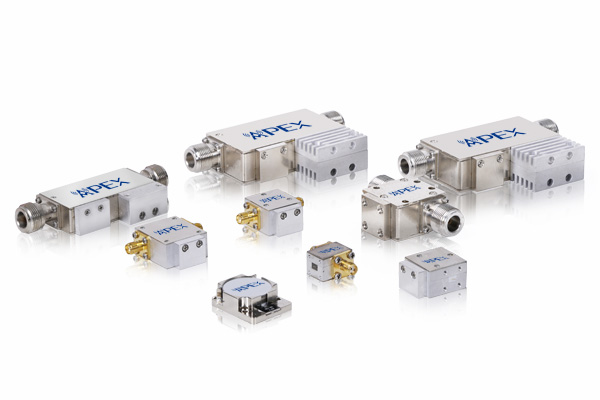

APEX Microwave RF isolator solution

Supports the full frequency band of 10MHz–40GHz, covering coaxial, surface mount, microstrip, and waveguide types, with low insertion loss, high isolation, small size, and customizability.

In addition to isolators, we also provide RF devices such as filters, power dividers, duplexers, couplers, and terminal loads, which are widely used in global communications, medical, aviation, industry and other fields.
