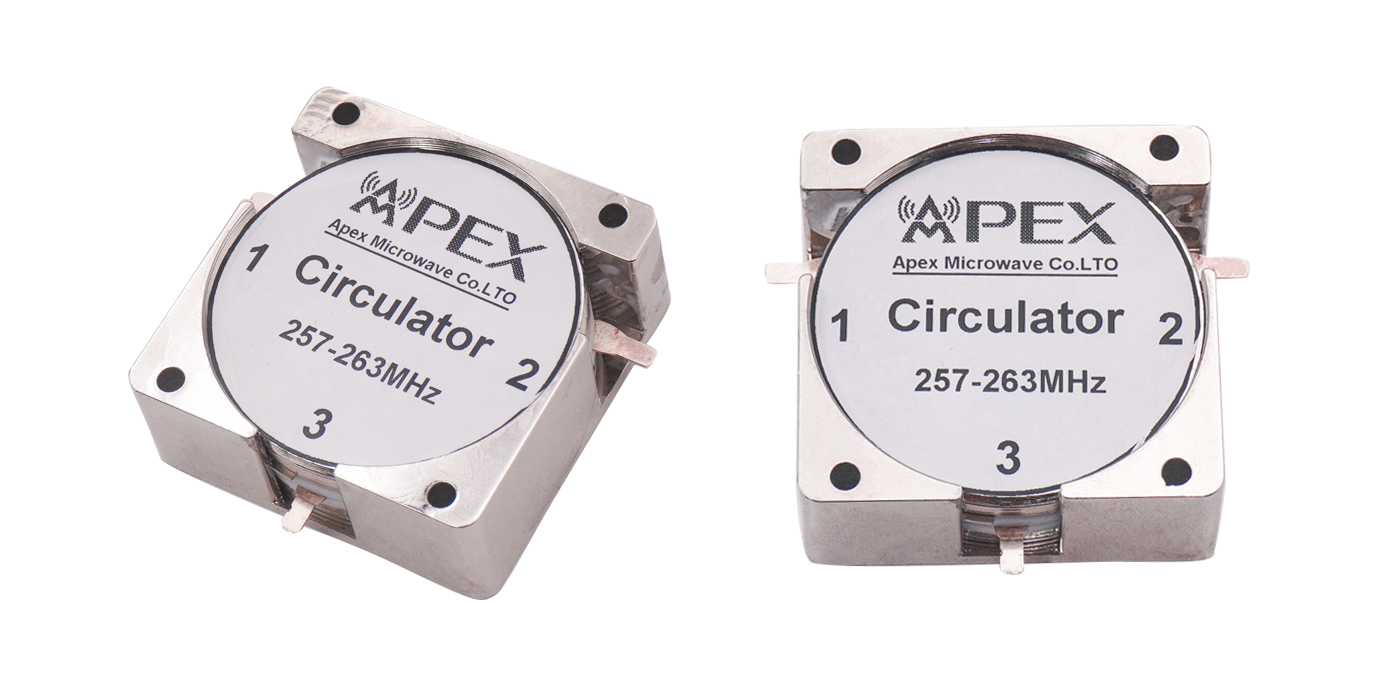

RF circulators are critical components in RF systems and are widely used in communications, radar, aerospace and other fields. Our Drop-in Circulators are high-quality products designed for high-performance applications, with excellent technical parameters and reliability, and can meet a variety of complex application requirements.
| Item | Parameter | Specifications |
| 1 | Frequency Range | 257-263MHz |
| 2 | Insert Loss | 0.25dB max 0.3dB max@0~+60℃ |
| 3 | Reverse Isolation | 23dB min 20dB min@0~+60℃ |
| 4 | VSWR | 1.20max 1.25max@0~+60ºC |
| 5 | Forward Power | 1000W CW |
| 6 | Temperature | 0ºC ~+60 ºC |
Product features
Low insertion loss
The insertion loss is as low as 0.25dB, which can minimize the energy loss during signal transmission, thereby improving system efficiency.
Excellent isolation performance
Reverse isolation reaches 23dB, ensuring signal directionality control, avoiding interference and performance degradation, and maintaining a minimum isolation of 20dB even in high temperature environments.
Stable VSWR
The VSWR is as low as 1.20, ensuring excellent system matching performance, effectively reducing reflection loss, and ensuring stable signal transmission.
High power handling capability
Supports forward power up to 1000W CW, which is an ideal choice for high-power application scenarios.
Wide temperature operating range
Can operate stably in the temperature range of 0℃ to +60℃, suitable for a variety of complex environments.
Rugged and durable structure
Adopting high-strength metal shell design, it has excellent pressure resistance and durability, and can meet long-term use requirements.
Application scenarios
Communication system
Used in base station equipment to achieve separation of sending and receiving signals, improve signal transmission efficiency and reduce interference.
Radar system
Optimize signal flow in the transmitting and receiving modules to improve the overall performance of radar equipment.
Laboratory test equipment
As an important device for signal processing, it provides high-precision support for testing and measurement.
Aerospace and Defense Applications
For professional RF equipment with high power and high stability requirements.
Our Advantages
As an experienced manufacturer of RF/microwave passive components, our products not only have excellent performance, but also support customized designs according to customer needs. Whether it is optimized for a specific frequency range or adjusted for size and power handling capabilities, we can provide the solution that best suits your application scenario. Our Drop-in Circulators are widely used in commercial communications, aerospace and defense fields with excellent technical parameters and stable and reliable performance.
This Drop-in Circulator combines low loss, high isolation and high power handling capabilities, making it an ideal choice for a variety of RF systems. If you need to know more about this product or other RF solutions, please feel free to contact us. We will provide you with professional support and services to help your project achieve the best performance!
