DC-960MHz LC duplexer: high isolation and low insertion loss RF solution

The DC-960MHz LC duplexer launched by Apex Microwave adopts a high-performance LC filtering structure, covering low frequency bands (DC-108MHz) and high frequency bands (130-960MHz). It is designed for the separation of transmit and receive signals in wireless communication systems. It has low insertion loss, high isolation and high power carrying capacity, and is suitable for RF applications such as broadcasting, radio, and emergency communications.

The duplexer has insertion losses of ≤0.8dB and ≤0.7dB in the two passbands, a standing wave ratio of ≤1.5:1, and an isolation of up to ≥50dB, which effectively avoids mutual interference between different channels and ensures clear and stable signals. It supports a maximum continuous wave input power of 100W, adapts to an operating temperature of -40°C to +60°C, and is suitable for various complex environments.

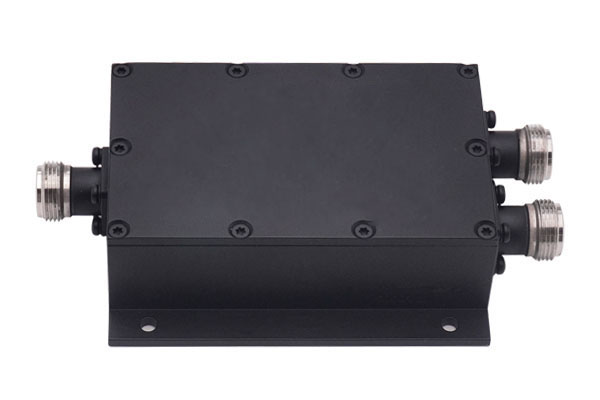

The product interface is N-Female, the size is 96mm × 79.6mm × 31mm, the structure is compact, the installation is flexible, the shell is painted black, the protection level is IP64, and it meets the use requirements of outdoor or dusty environments.

Apex Microwave supports customization of different frequency ranges, interface types, etc. according to user needs. All products comply with RoHS environmental protection standards and provide three-year warranty and professional technical support to ensure long-term reliable operation of the equipment.
