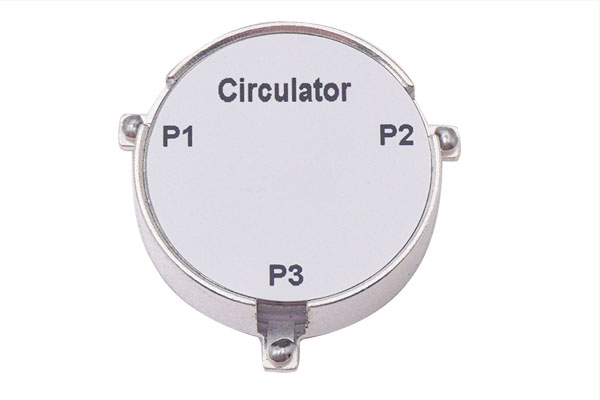

In wireless communication systems and RF front-end modules, circulators are important components for signal isolation and reducing reflection interference. The 758-960MHz SMT circulator launched by Apex Microwave provides efficient solutions for base stations, RF power amplifiers (PAs) and microwave communication equipment with its low insertion loss, high isolation and compact design.
Product Features
Frequency range: 758-960MHz
Low insertion loss: ≤0.5dB (P1→P2→P3)
High isolation: ≥18dB (P3→P2→P1)
VSWR: ≤1.3
High power handling capability: 100W CW (forward & reverse)
Direction: clockwise
Operating temperature range: -30°C to +75°C
Package type: SMT (surface mount), suitable for automated production
Typical applications
5G/4G wireless base stations: optimize RF signal flow and improve system stability
RF power amplifier (PA): protect amplifiers from damage caused by signal reflection
Microwave communication systems: enhance signal transmission efficiency and reduce losses
Radar and aerospace communications: provide stable signal isolation in high-reliability systems
Reliability and customization services
The circulator complies with RoHS environmental standards and provides a variety of customization options, such as different frequency ranges, interface types, packaging methods, etc., to meet customers’ special needs.
Three-year quality assurance
Apex Microwave all RF products enjoy a three-year warranty to ensure long-term stable operation of the product, and provide professional technical support and after-sales service.
