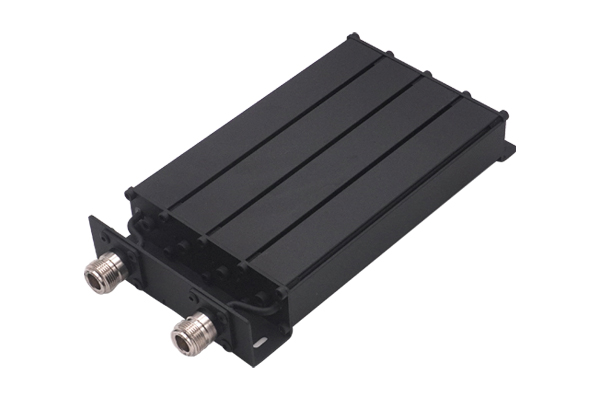

CatalogueIn wireless communications and RF systems, Bandpass filters are used to suppress interference signals within a specific frequency band and improve the overall stability and anti-interference ability of the system. The 380-520MHz Bandpass filter launched by Apex Microwave has high power handling capability, low insertion loss and excellent VSWR performance, and is widely used in wireless communications, signal processing, radar systems and other high-frequency application scenarios.
This product supports a frequency range of 380-520MHz, a bandwidth of 2-10MHz per frequency point, an insertion loss as low as ≤1.5dB, a VSWR ≤1.5, a conventional impedance of 50Ω, and a maximum input power of up to 50W, ensuring stable signal transmission while effectively suppressing unwanted frequency band signals. Its high selectivity and reliability make it an indispensable RF component in multi-band systems, communication base stations, and DAS distributed antenna systems.
In terms of structural design, the Bandpass filter uses an N-Female interface, measures 210×102×32mm, weighs 0.6kg, and has a black spray-coated housing, which is sturdy and durable. The operating temperature range covers -20°C to +50°C, adapting to various indoor and outdoor environments. At the same time, the product complies with the RoHS 6/6 environmental protection standard and meets the requirements for export and international market use.
Apex Microwave provides customized support services, and can adjust technical parameters such as band-stop frequency band, interface type, housing structure, etc. according to customer specific needs to meet the integration requirements of different RF systems. All products are provided with a three-year warranty to ensure long-term operation for customers.
For more product details, please visit: Apex Microwave official website https://www.apextech-mw.com/ or email: sales@apextech-mw.com
