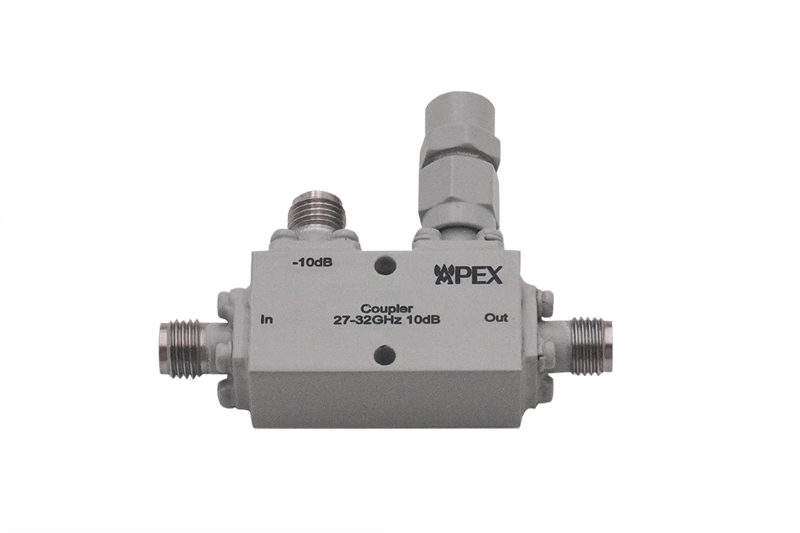

In high-frequency RF and microwave systems, directional couplers are key passive components and are widely used in signal monitoring, power measurement, system debugging and feedback control. The 27GHz-32GHz directional coupler launched by Apex has the characteristics of wide bandwidth, high directivity, and low insertion loss, and is suitable for high-end applications such as radar, satellite communication, 5G, electronic warfare, and test and measurement.
Product Features
Operating frequency: 27GHz-32GHz
Insertion loss: ≤1.6dB
Coupling degree: 10±1.0dB
Directivity: ≥12dB
Forward power: up to 20W
Interface: 2.92mm female (2.92-Female)
Size: 28mm × 15mm × 11mm
Application field
✅ Microwave communication: In millimeter wave communication systems, it is used for signal monitoring, power distribution and network matching to improve system stability.
✅ Radar Systems: Widely used in phased array radars, millimeter wave radars, and defense radars to ensure accurate signal coupling and improve target detection accuracy.
✅ 5G and Satellite Communications: Suitable for high-frequency millimeter wave signal transmission, and efficient signal control and monitoring in 5G millimeter wave base stations, satellite ground stations, and other equipment.
✅ Test and Measurement: In laboratory and production environments, used for RF testing, signal analysis, network analyzer calibration, etc., to ensure high-precision measurement capabilities of equipment.
✅ Electronic Warfare and Defense: In applications such as electronic countermeasures, radar detection, and military communications, ensure efficient signal processing and improve system performance.
Apex Microwave is committed to providing high-performance RF components to meet the needs of global communications, radar, satellite, and test and measurement fields. For more information, please visit https://www.apextech-mw.com/ or contact sales@apextech-mw.com.
